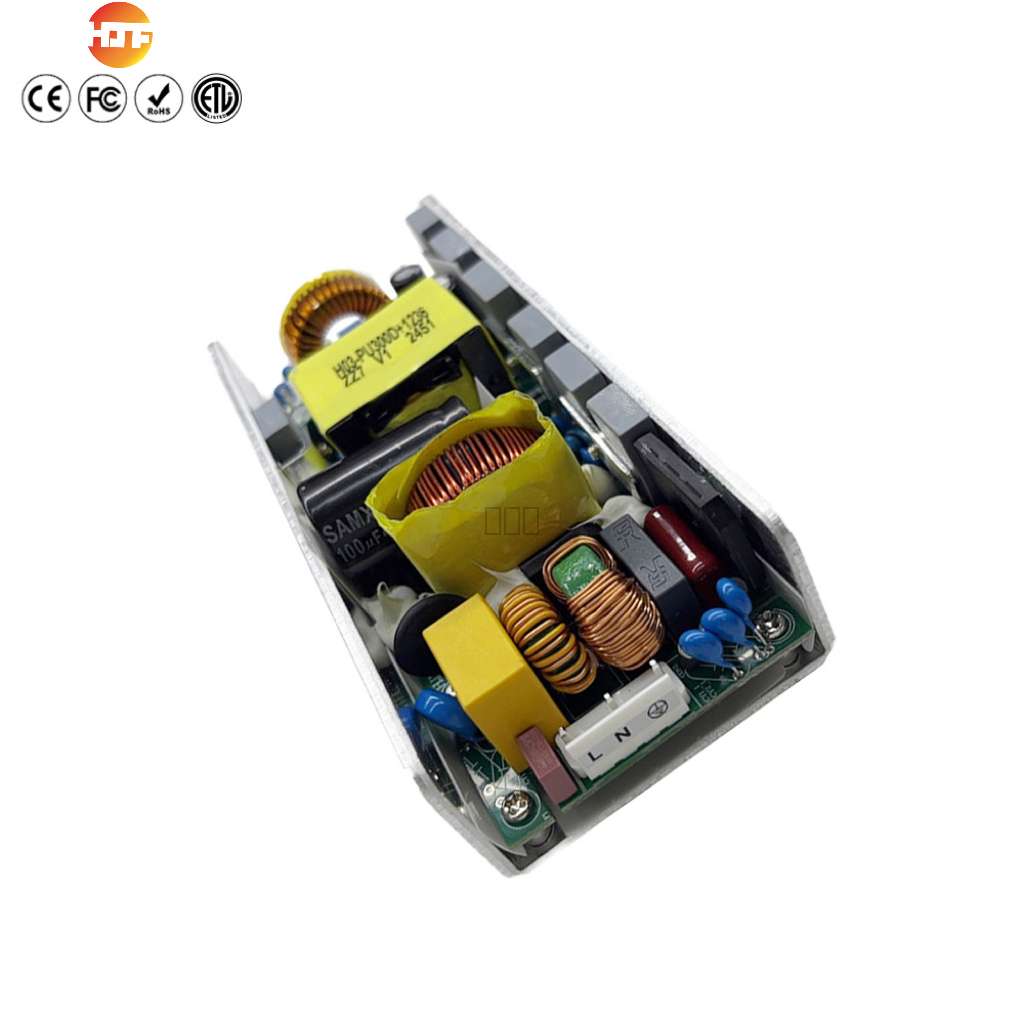

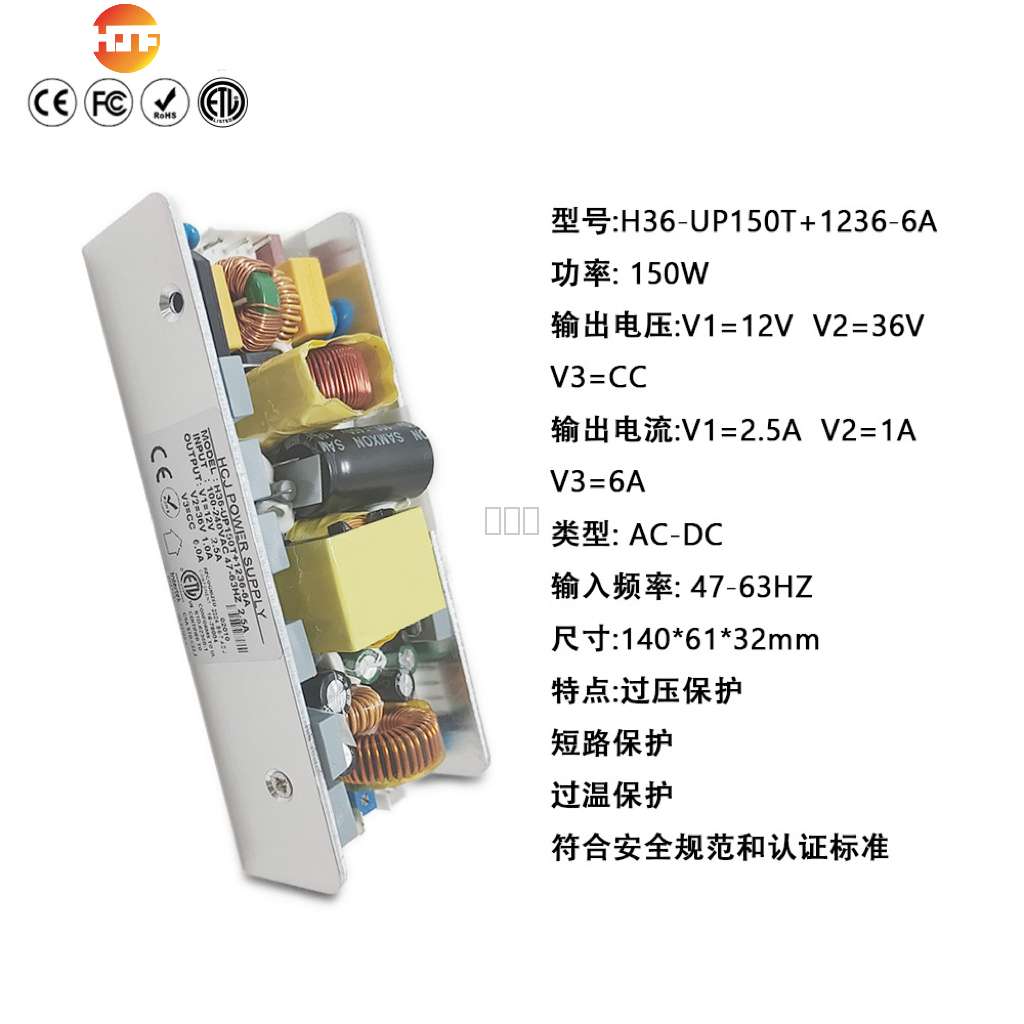

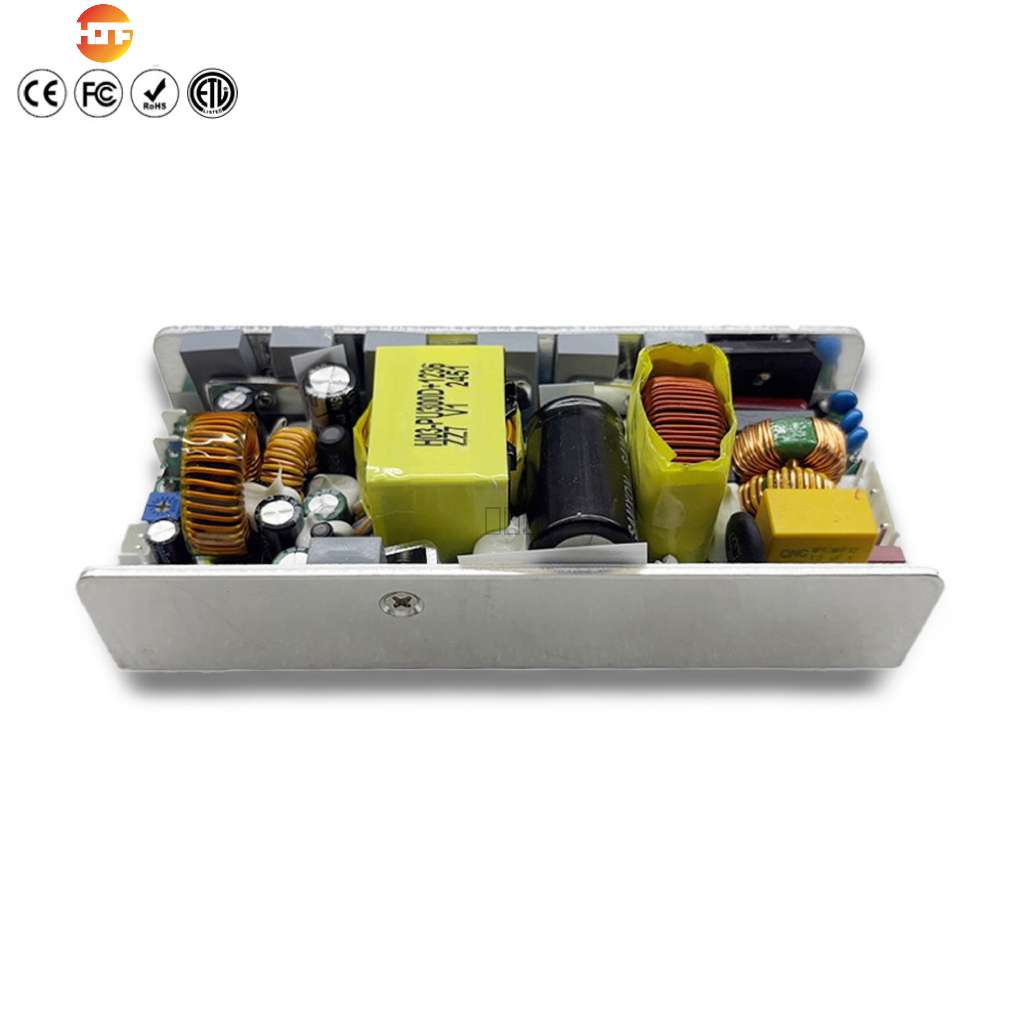

恒俊丰恒流调光电源12V36V三路输出超薄外置恒流驱动电源

Input voltage range 输入电压

90Vac to 264Vac

Normal voltage range标称输入

100Vac to 240Vac

Frequency range    频率范围

50Hz/60Hz±5%

Max input ac current

最大输入电流

8.0Amax at full load   condition

Inrush current (cold   start)

浪涌电流

30Atyp peak, 120Vac;60Atyp   peak, 220Vac

Efficiency(full   load)     效率

83.2%   at 100Vac; 85.4% at 230Vac Typ.

Leakage Current    泄漏电流

Less Than 0.5mA,   240Vac input

Power Factor 功率因数

>0.98@115VAC;   >0.96@230VAC Full load

Output Voltage

输出电压

Regulation

调整率

Min. current

最小电流

Rated current

额定电流

Peak current

峰值电流

12V

±4%

0.2A

2.5A

4.0A

36V

±3%

0.2A

1.0A

2.0A

12V-15V

0

CC=6.0A

6.0A
