H81系列24V15A防水充电器

2026-05-09 14:55

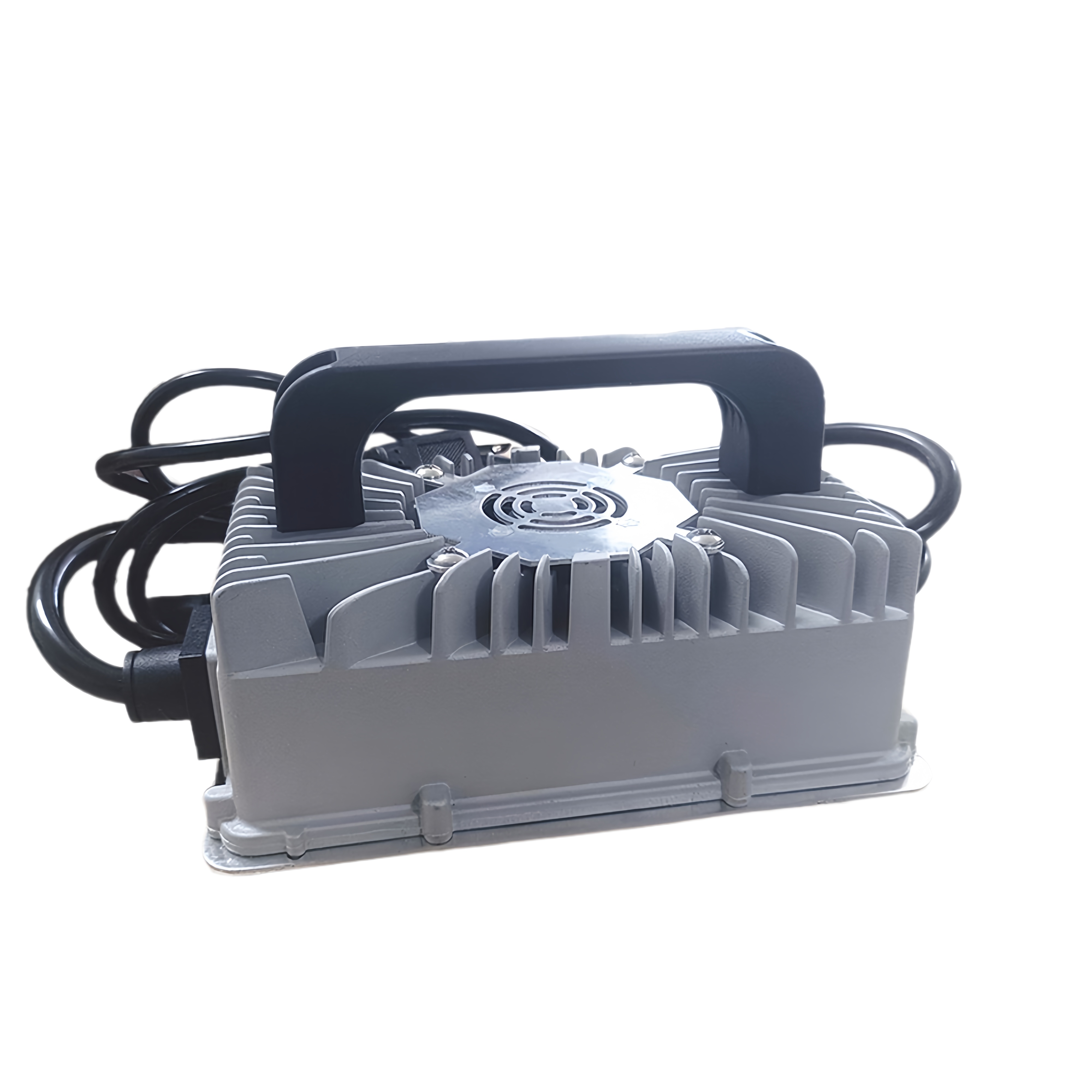

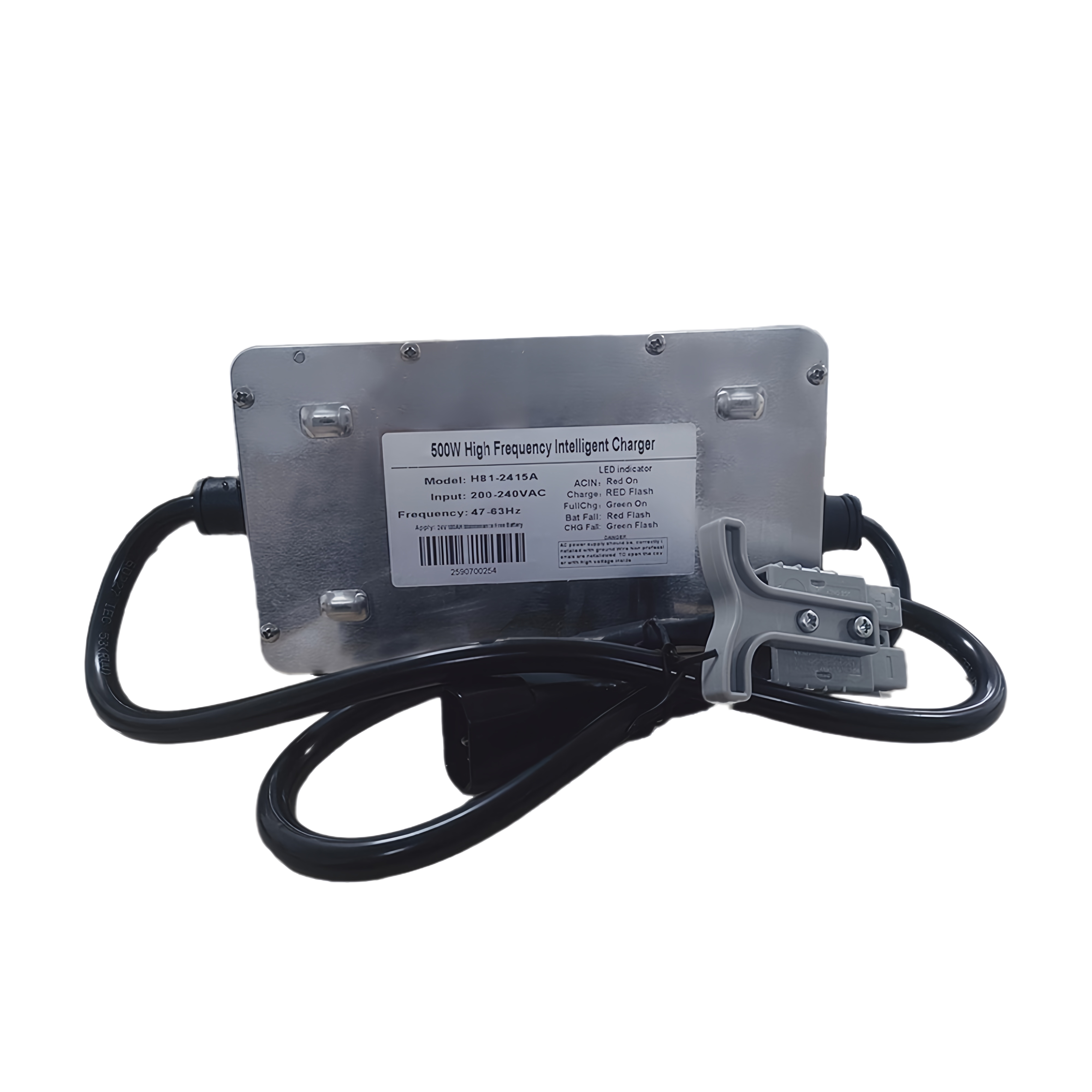

H81-U500-2415（2）jpg.jpg H81-U500-2415（4）jpg.jpg

防水等级：IP65

环境温度

* Operating工作温度: -20℃ to +50℃.

* Storage存储温度: -20℃ to +80℃.

环境湿度

* Operating工作:From 10%to90% relative humidity (non-condensing).

* Storage存储: From 5 to 95% relative humidity (non-condensing)

冷却方式

* 4010 Ventilation cooling . 4010 风扇强制冷却

外壳材质

Aluminum shell 铝外壳

输入输出电源线

Input line 输入线3*1.0*0.3m+3*0.5*1.5m，output line输出线 2*2.5*0.95m

* 185mm X 112mm X 70mm(不带手柄高度)+ 42mm手柄高度(长L *宽W * 高H )

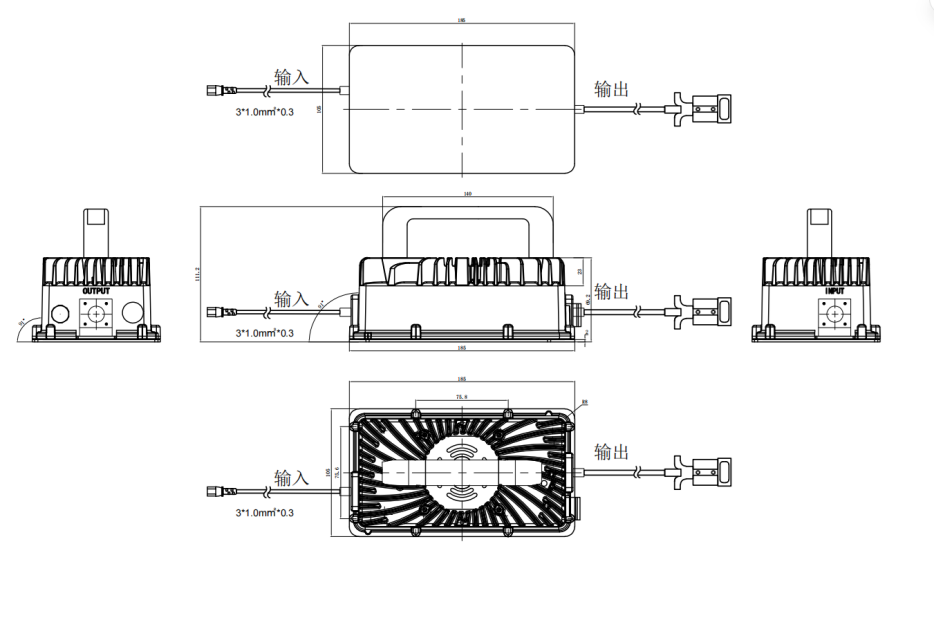

安装尺寸&外观图

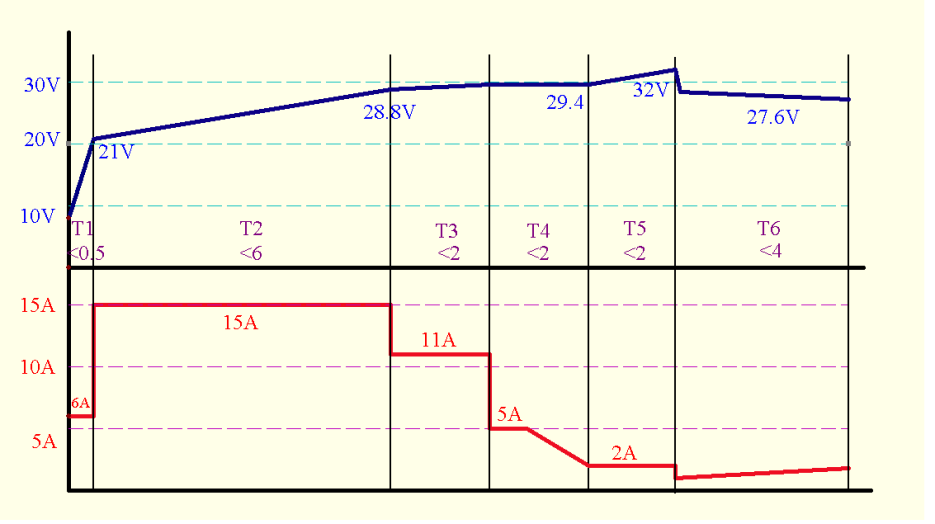

24V15A充电曲线

预充电阶段（T1 ）---快速充电阶段（T2、T3）----浮充充电阶段（T4）---充电维护阶段（T5、T6）

Precharge stage (T1) -- fast charging stage (T2, T3) -- floating charging stage (T4) -- charging maintenance stage (T5, T6)

输入特性

Input voltage range 输入电压	200Vac to 240Vac
Frequency range 频率范围	50Hz/60Hz±5%
Max input ac current 最大输入电流	3.5Amax at full load condition
Inrush current (cold start) 浪涌电流	40Atyp peak, 220Vac.
Efficiency(full load) 效率	92.2% at 230Vac Typ.
Power Factor 功率因数	>0.5@230VAC Full load
Leakage Current 泄漏电流	Less Than 0.5mA, 240Vac input
Input Fuse 输入保险	T6.3AH/250Vac

输出特性

CV Charging voltage CV充电电压	29.2V-29.4V
CC Charging current CC充电电流	15.0A±5%

保护特性

电池接反接 Reverse-connection	当充电机输出与电池接反时，充电机不启动，正确连接后自动开始充电。when charger output is connected reversely with the battery,the charger won’t start when they are connected properly,battery charging starts automatically.
输出短路 Short-circuit	当输出发生短路时，电压停止输出，短路解除后自动恢复充电。when short-circuit occurs,voltage output will terminate.After short-circuit is solved,it will recharge the battery automatically.
过热自动 Overheating automatic	内部变压器温度超过105℃时，停止输出并报警并关机(选配)。when the internal temperature of transformers exceeds 105℃.output will terminate;alarm warning will be issued and the charger will turn off.(Optional)
充电超时Time-out	内置充电超时定时器，充电时间最长不超过10小时，充电机强制关机。time-out timer is internally installed and charging time shall not exceed 15 hours.the charger is forced to shut down.
待机Standby	接通输入电压，长时间不接电池或电池充满后长时间不断开电源，关充电器主电路，进入特色待机状态。the input voltage is connected.but it’s not connected with batteries for a long time or the power supply is not cut off after batteries are fully charged.in this case,main circuit of the charger shall be turned off and it enters standby mode.
